Appledental Pulto Eco Sensor
Appledental Pulto Eco Sensor
Additional Features:
Visual Highlights:

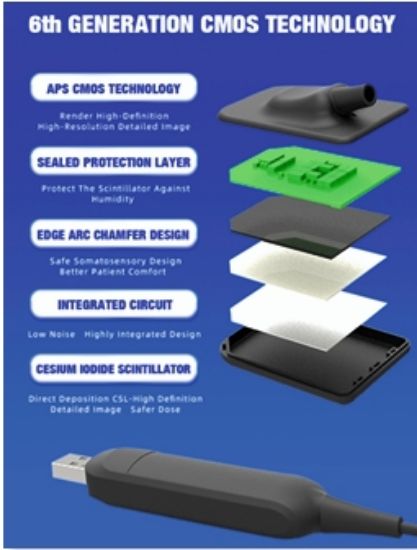

Technology Info (6th Generation CMOS Technology):
APS CMOS Technology – High-resolution detailed image
Sealed Protection Layer – Protects scintillator against humidity
Edge Arc Chamfer Design – Safer and more comfortable for patients
Integrated Circuit – Low noise, highly integrated design
Cesium Iodide Scintillator – Direct deposition Csl, high definition, safer dose
| Model | Pluto 0001X | Pluto 0015X |
|---|
| Detector Technology | APS CMOS | APS CMOS |
| Scintillator | CsI | CsI |
| Pixel Matrix | 1000*1500 | 1300*1800 |
| Theoretical Resolution | 25lp/mm | 25lp/mm |
| Active Area (mm) | 20*30 | 26*36 |
| Mechanical Dimensions (mm) | 2538.54.5 | 31454.5 |
| Pixel Pitch (µm) | 20 | 20 |
| Imaging Time | 2S | 2S |
| Data Interface | USB2.0 | USB2.0 |
| Ingress Protection | IP68 | IP68 |
| Operation System | Windows 7 and above | Windows 7 and above |
